Automatic Cartoning Machine for Aluminum Foil Small Roll Packing

Automatic Cartoning Machine for Aluminum Foil Small Roll Packing

Marka Adı:	LIKEE
Model numarası:	LKC500

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri:

Shanghahi, Çin

Sertifika:

CE, SGS, ISO9001, and ISO14001

Ürün Açıklaması

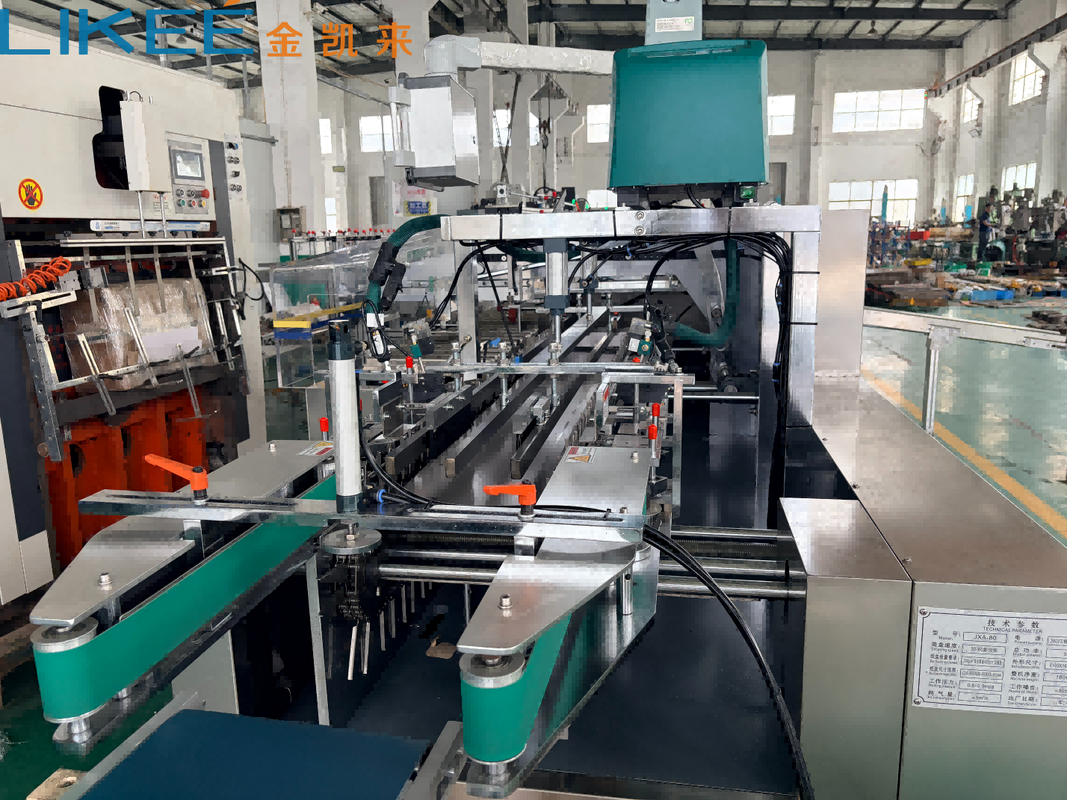

Automatic Cartoning Machine for Aluminum Foil Small Roll Packing

Product Overview

This automatic cartoning machine is specifically engineered for packaging aluminum foil small rolls. It integrates multiple functions into one continuous automated process including feeding, box opening, loading, glue spraying, sealing, and waste rejection.

Rational structure with simple operation and user-friendly configuration
PLC programmable control system with touchscreen HMI interface
High precision braking and sensitive operation
Photoelectric detection system prevents empty box sealing
Easy changeover between different box sizes
Automatic loading position adjustment for smaller products
Main drive motor with overload protection
Optional flip-top safety protective cover

Technical Specifications

Parameter	Specification
Encasing Speed	30-60 boxes/min
Box Quality Requirement	300g/m³ or 400g/m³ White Cardboard
Box Dimension Range (L×W×H)	(200~460) × (30~60) × (30~60) mm
Working Pressure	0.6-0.9 Mpa
Air Consumption	< 5 m³/h
Power Supply	380V, 3-Phase AC, 50Hz
Motor Power	5 KW
Machine Dimension (L×W×H)	4100 × 1600 × 1900 mm
Machine Weight	1800 KG
Noise at Work	< 80 dB

Frequently Asked Questions

What sizes of aluminum foil rolls can this machine handle?

The machine accommodates various roll sizes as long as the carton dimensions fall within (200-460)mm length × (30-60)mm width × (30-60)mm height. Changeover is achieved by adjusting tooling and templates.

How does the machine prevent empty boxes from being sealed?

A photoelectric detection and tracking system inspects each box before sealing. If no product is detected inside, the machine will not seal or discharge the box, avoiding empty packaging waste.

Can the machine handle different carton materials?

Yes. It is designed to run reliably with 300g/m³ or 400g/m³ white cardboard. Simple tooling adjustments allow adaptation to different materials and thicknesses.

What safety features are included?

The main drive motor is equipped with an overload protection device. An optional flip-top safety protective cover is also available, ensuring operator safety while allowing easy access for maintenance.

What are the installation requirements?

The machine requires a 380V/50Hz three-phase AC power supply and a compressed air source of 0.6-0.9 Mpa with an air consumption of less than 5 m³/h.

Is the machine noisy during operation?

Operating noise is below 80 dB, meeting standard industrial workshop noise levels without requiring special soundproofing.
